Rated voltage ： 5VDC
Number of Phase ： 4
Speed Variation Ratio ： 1/64
Stride Angle ： 5.625° /64
Frequency : 100Hz
DC resistance ： 60Ω±7%(25℃)
Idle In-traction ： 300Hz
Idle Out-traction ： 500Hz
In-traction Torque : >34.3mN.m(120Hz)
Self-positioning Torque :>34.3mN.m
Friction torque : 800-1300 gf.cm
Pull in torque : ≥350 gf.cm
Insulated resistance : >10MΩ(500V)
Insulated electricity power ：600VAC/1mA/1s
Insulation grade ：A
Rise in Temperature : <55K(120Hz)
Noise : <35dB(120Hz,No load,10cm)

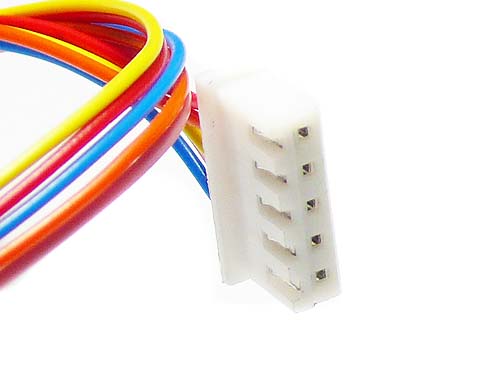

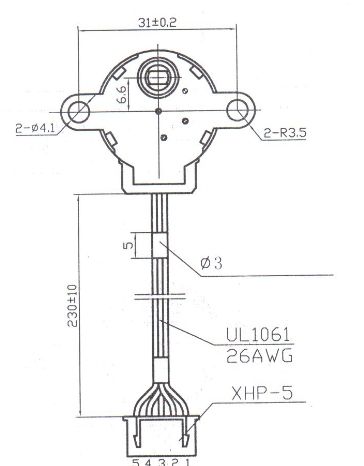

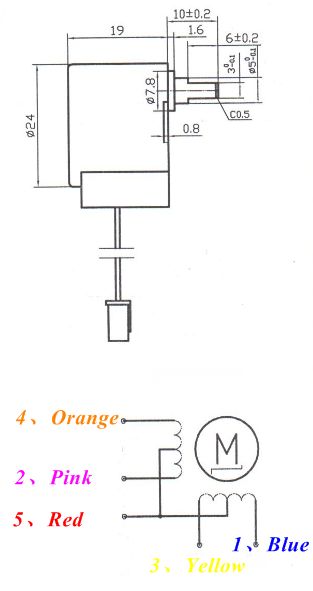

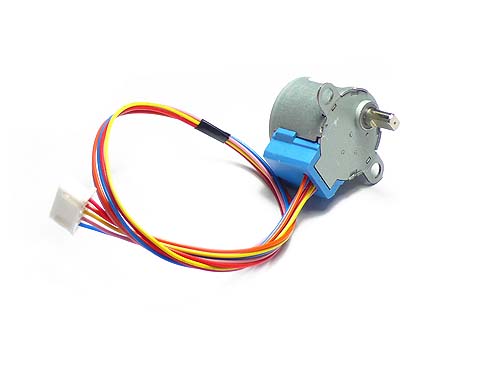

Unipolar Stepper Motor 24BYJ48-64-5VDC
