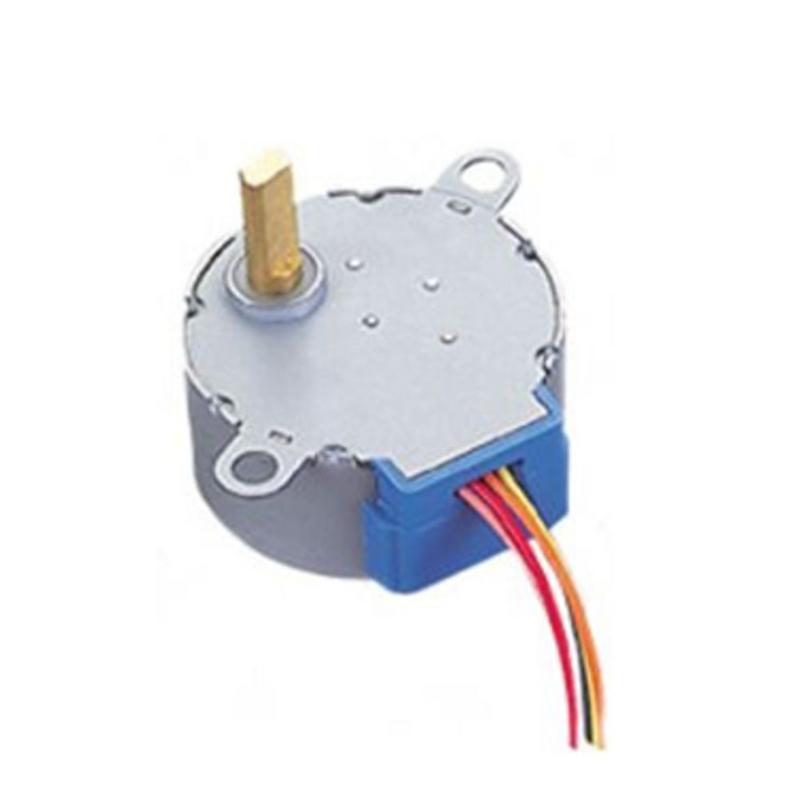

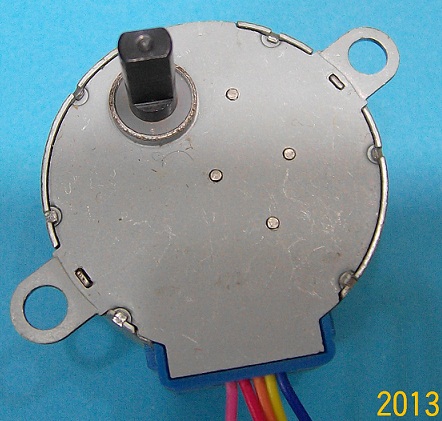

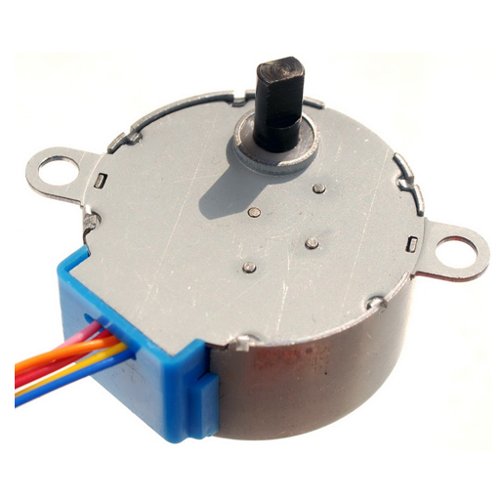

Uni-Polar Stepper Motor 35BYJ46-42.5-12VDC
Rated voltage : 12VDC
Number of Phase : 4
Speed Variation Ratio : 1/42.5
Stride Angle : 3.75° /42.5
Frequency : 100Hz
DC resistance : 130O±7%(25?)
Idle In-traction Frequency : >450Hz
Idle Out-traction Frequency : >550Hz
In-traction Torque : >34.3mN.m(120Hz)
Self-positioning Torque : =1500 gf.cm
Friction torque : =1500 gf.cm
Pull in torque : =700 gf.cm
Insulated resistance : >50MO(500V)
Insulated electricity power :600VAC/1mA/1s
Insulation grade :A
Rise in Temperature <55K(120Hz)
Noise <40dB(120Hz,No load,10cm)
Model : 35BYJ-46
