Human Body PIR Motion Sensor Shield
---Electrical Parameters :
- Sensor : PIR pyroelectric
- Working voltage range: dc voltage 4.5-20V
- 50uA: static electricity
- Output level: high 3.3 V/low 0V
- Trigger mode : L do not repeat trigger
: H repeat trigger
- Dimensions: 38*28mm（32 * 24 mm)

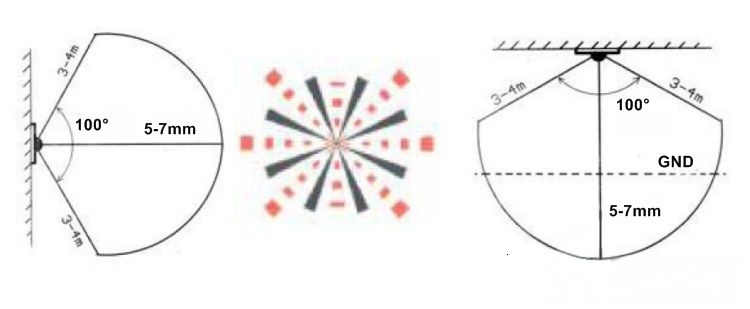

- Induction angle : 110 °
- Induction distance: 7 meters
---Applications :
- Security products
- Body induction toys
- Body induction lamps and lanterns
- Industrial automation control etc
